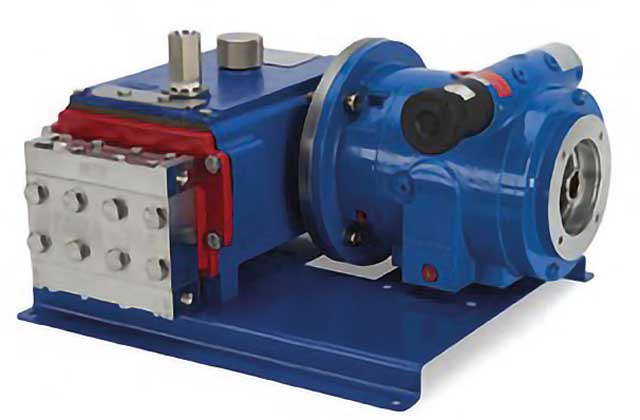

To call Wanner’s new Hydra-Cell® MT8 a low flow high pressure metering pump would do it a serious injustice.
This amazing triplex diaphragm pump can achieve a minimum flow rate of 0.227 litres per hour with the accuracy, linearity and repeatability demanded by API 675, but is capable of generating a maximum flow of 30.28 l/h. The Hydra-Cell MT8 is designed to perform at pressures, up to 241 bar, while generating a smooth virtually pulseless flow for homogeneous metered injection.
With no cups, packing or seals to leak and its ability to handle a wide range of aggressive and abrasive liquids and even run dry without damage, new uses for the MT8 are surfacing daily.
The use of PTFE diaphragms, along with the availability of a wide range of pump head materials, make the MT8 the ideal choice for metering hazardous liquids.
The replenishment valve system in every piston ensures optimum actuating oil on every stroke for continuous accuracy and protects the pump from damage in the event of a blocked suction line.
With suction and discharge ports on either side of the pump for installation flexibility and range of electronic and manual control options, the Hydra-Cell MT8 opens up many new possibilities for chemical metering and injection.
